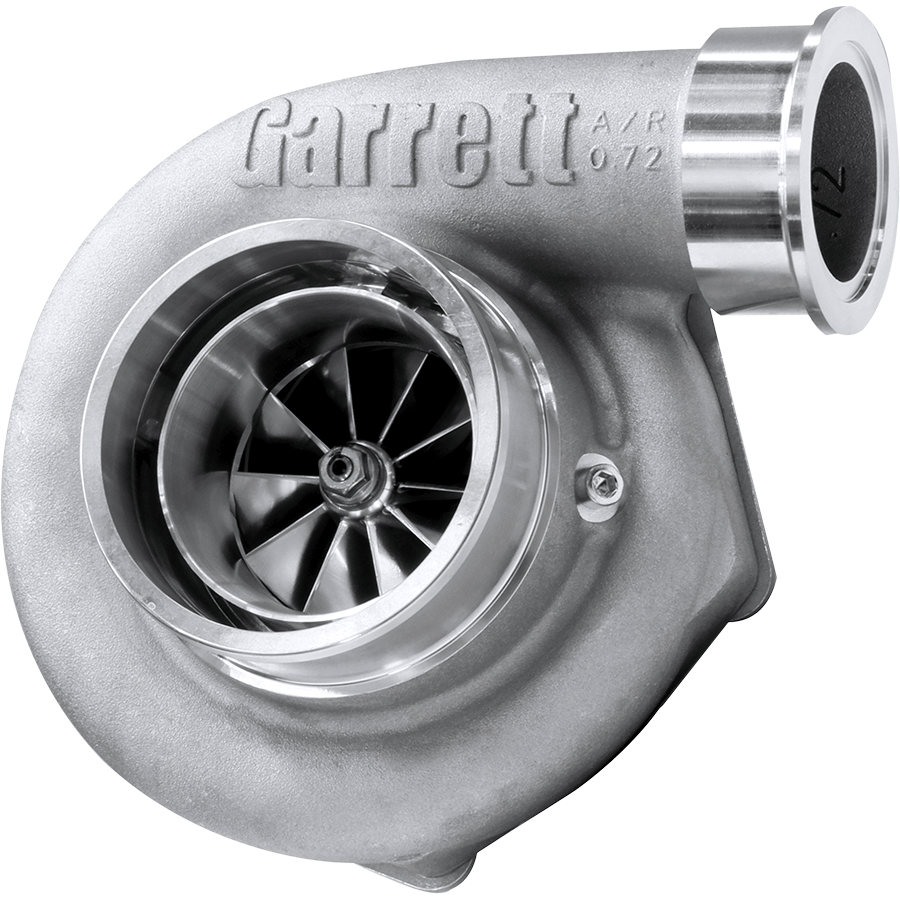

Garrett GTX3584RS Gen II Turbo Assembly Kit V-Band

SKU: 856804-5001S
$2,998.91
By Garrett

A/R

Horsepower: 550-1000

Displacement: 2.0L-5.5L



Part Type: Turbo Assembly Kit
Manufacturer: Garrett
Turbo Type: GTX3584RS

Turbo Model: GTX3584RS Gen II



Compressor:

Compressor Wheel Exducer: 84mm

Compressor Wheel Inducer: 67mm

Compressor Wheel Trim: 64

Compressor Housing A/R: 0.72 A/R



Turbine:

Turbine Wheel Inducer 68mm

Turbine Wheel Exducer: 62mm

Turbine Wheel Trim: 84



Part Number Options:

856804-5001S Vband 0.83; Hose Comp Outlet

856804-5002S Vband 1.01; Hose Comp Outlet

740902-0052 Vband 1.01; Hose Comp Outlet

856804-5004S  Vband 0.83; V-band Comp Outlet

856804-5005S Vband 1.01; V-band Comp Outlet

856804-5006S Vband 1.21; V-band Comp Outlet
