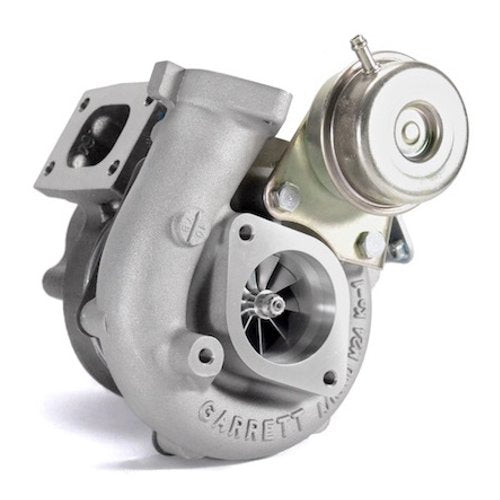

Garrett GTX2967R SR20DET Drop-In Turbo Upgrade

Garrett's GTX2967R Turbo Upgrade is a direct drop-in for vehicles with Nissan SR20DET platforms and an original GT2560R. Featuring a dual ball bearing and internally gated T25 flanged turbine housing (in either .64 or .86 A/R) plus an internal wastegate actuator (12-14PSI), the GTX2967R can generate up to 560HP of potential flow thanks to its ultra high flow compressor wheel and Garrett 10-Blade technology.


PRODUCT SPECIFICATIONS:
* Compressor Wheel Inducer: 49.7mm
* Compressor Wheel Exducer: 67.4mm
* Compressor Wheel Trim: 55
* Turbine Wheel Inducer: 56.5mm
* Turbine Wheel Exducer: 51.8mm
* Turbine Wheel Trim: 84
* Nissan SR20DET style compressor housing (2 Bolt Inlet Flange and 3 Bolt Outlet Flange).
* Internal Wastegate Actuator (12 to 14PSI)



TURBINE HOUSING OPTIONS:
* T25 Inlet, 5 Bolt Outlet, and internally gated (Available in .64 or .86 A/R)


APPLICATION NOTES:
* Uses same oil and coolant fittings as the standard GT28, GT30, and GTX35 series turbochargers.

APPLICABLE GARRETT PART NUMBERS:

* 836041-5001S

* 836041-1

* 836013-0001
