Garrett Gen2 GTX3576R with RB25DET T3 6 Bolt Turbine Housing + 1 Bar Actuator

SKU: GRT-TBO-J23
$2,576.67 $2,996.53
By Garrett

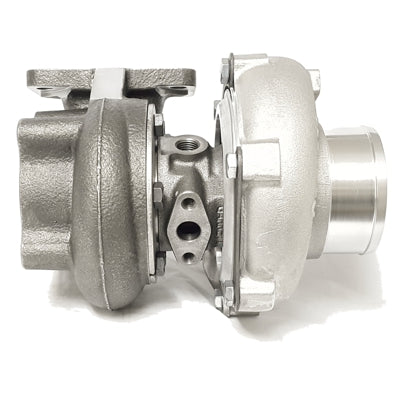

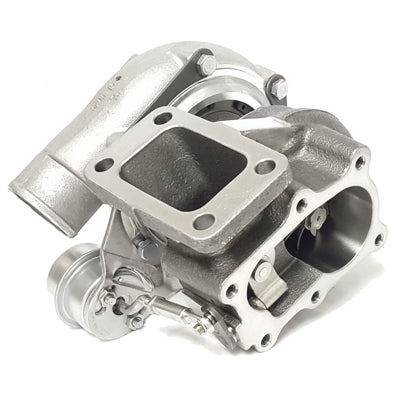

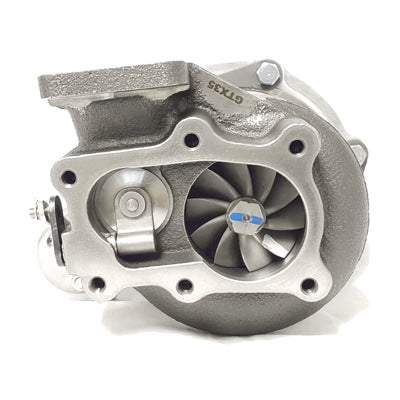

NOW GEN2! GTX3582R dual ball bearing turbocharger with RB25DET T3 6 bolt exit turbine housing and compact compressor housing. This is a drop-in ready RB25DET turbo complete with a 1 bar internal wastegate actuator. 750HP potential flow. This turbo upgrade gives you the potential to reach up 750HP and delivers a fast response time with its dual ball bearing design. Plus, the easy-to-install package includes an RB25DET T3 6 bolt exit turbine housing, a compact compressor housing, and a 1 bar internal wastegate actuator.

Product Specifications:
  • Compressor Wheel Inducer: 66mm
  • Compressor Wheel Exducer: 82.5mm
  • Compressor Wheel Trim: 56
  • Turbine Wheel Inducer: 68.0mm
  • Turbine Wheel Exducer: 62.3mm
  • Turbine Wheel Trim: 84

Garrett Part Numbers:

  • 803715-5001S
  • 836047-5002S
