Garrett Gen2 GTX3576R with RB25DET T3 6 Bolt Turbine Housing + 1 Bar Actuator

SKU: GRT-TBO-J24
$2,295.00 $2,944.41
By Garrett

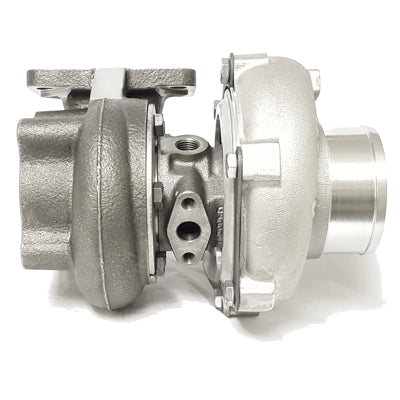

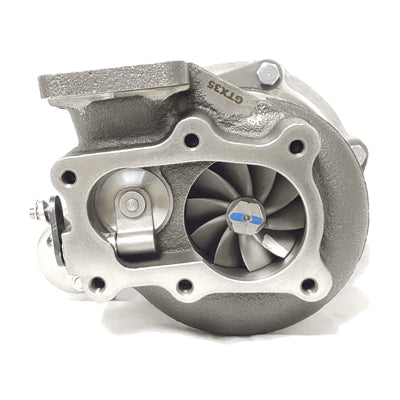

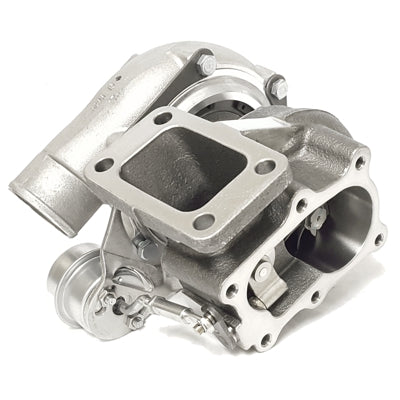

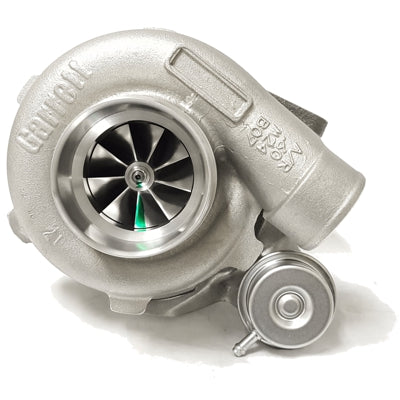

Garrett GEN2 GTX3576R dual ball bearing turbocharger with RB25DET T3 6 bolt exit turbine housing and compact compressor housing. This is a drop-in ready RB25DET turbo complete with a 1 bar internal wastegate actuator. Advanced GEN2 billet compressor wheel capable of 750HP! This race-ready turbocharger embodies precision engineering with its dual ball bearing technology and advanced GEN2 billet compressor wheel - able to support up to 750HP without requiring any modifications. Perfectly optimized for RB25DET vehicles, it provides the ideal combination of quick spool and smooth power delivery.


Product Specifications:

  • Compressor Wheel Inducer: 58mm
  • Compressor Wheel Exducer: 76mm
  • Compressor Wheel Trim: 58
  • Compressor Housing: 0.60 A/R
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62mm
  • Turbine Wheel Trim: 84
