Garrett Gen2 GTX3076R with RB25DET T3 6 Bolt Turbine Housing + 1 Bar Actuator

In stock
SKU: GRT-TBO-J28
Regular price $2,415.34

Product details

  • SKU GRT-TBO-J28

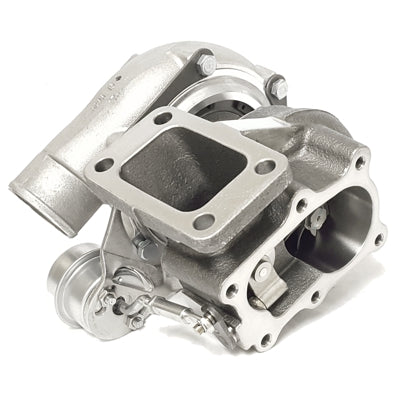

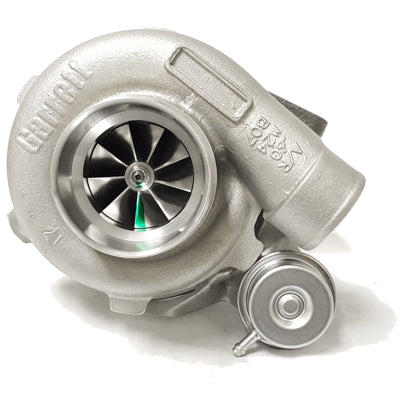

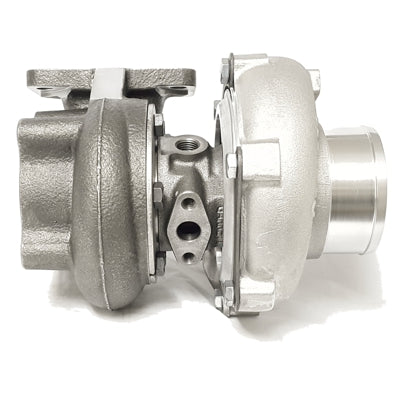

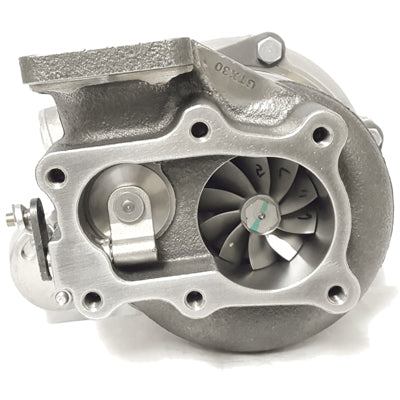

Garrett GEN2 GTX3076R dual ball bearing turbocharger with RB25DET T3 6 bolt exit turbine housing and compact compressor housing. This is a drop-in ready RB25DET turbo complete with a 1 Bar internal wastegate actuator. Advanced GEN2 billet compressor wheel capable of 750HP! This turbocharger provides superior performance and efficiency with its cutting-edge GEN2 billet compressor wheel, dual ball bearing design, and RB25DET T3 6 bolt exit turbine housing. With its 1 bar internal wastegate actuator, it is an ideal solution for those needing a robust, drop-in ready turbocharger capable of up to 750HP.
Product Features:
  • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
  • Forged billet aluminum compressor wheel
  • Dual ball bearing CHRA rotating assembly
Product Specifications:
  • Compressor Wheel Inducer: 58 mm
  • Compressor Wheel Exducer: 76 mm
  • Compressor Wheel Trim: 58
  • Compressor Housing A/R: 0.60
  • Turbine Wheel Inducer: 60 mm
  • Turbine Wheel Exducer: 55 mm
  • Turbine Wheel Trim: 84
  • Garrett PN: 851154-5001S
